    300-1800MM Large CNC Front And Rear Angle Grinding Machine

    Ask Lasest Price
    Brand Name : Lidexin
    Model Number : LDX-026A
    Certification : CU,ISO
    Price : Western Union
    Payment Terms : T/T, Western Union
    Supply Ability : 100pcs/mon
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

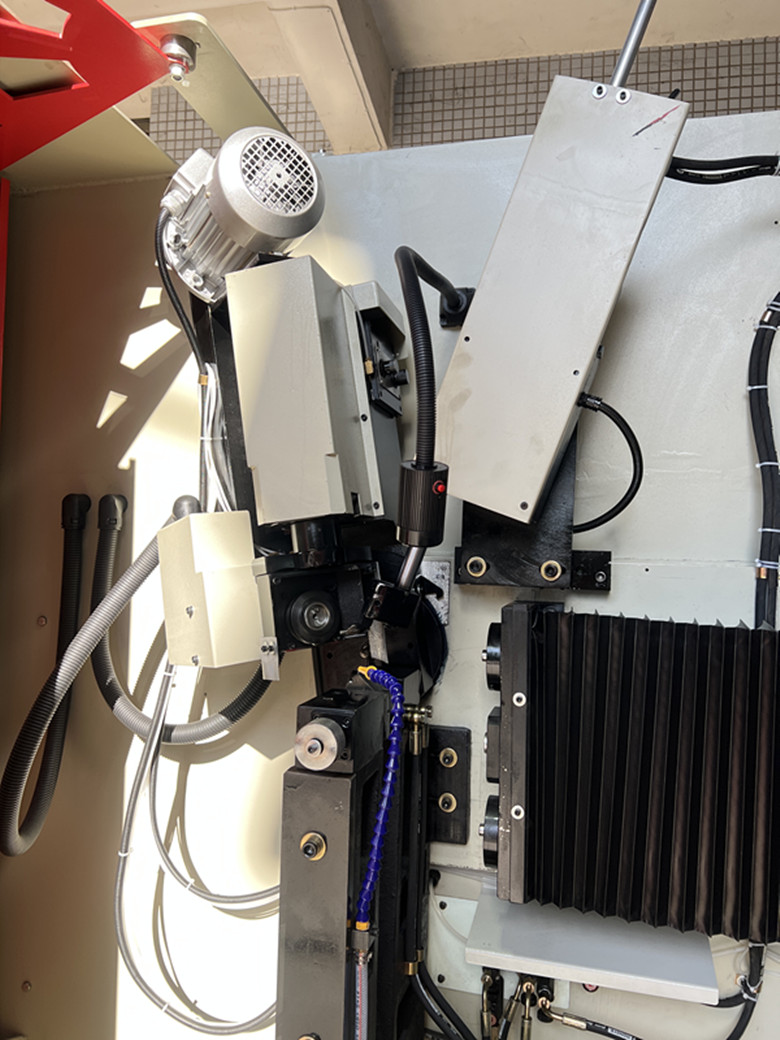

    300-1800MM Large CNC Front And Rear Angle Grinding Machine

    LDX-026A Can grind diameter 300-1800MM large CNC front and rear Angle grinding machine manufacturers


    Features of saw blade grinding machine:

    1,The main use of saw blade grinding machine is also counted as more common, as a cutting machinery equipment, it has more significant characteristics.

    2,Its characteristics are determined by: an adjustment seat for vertically rotating the vertical Angle of the motor is arranged between the equipment and the slide seat in the sand wheel plate operation.

    3,An Angle adjustment organization is provided on the adjusting seat to adjust the Angle of view of the level position, and the Angle of view of each direction of the sand wheel plate can be adjusted.


    Technical parameters:
    Processing saw blade diameter range: ¢300- ¢ 1800mm
    Saw blade aperture: ¢ 10-220mm
    Saw blade thickness (steel plate): 1-12mm
    Tooth pitch: 7-120mm
    Tooth surface angle: 5 degrees to+30 degrees
    Tooth top back angle: 6-45 degrees
    Left and right inclination of teeth: tooth tip/tooth surface 45 degrees
    Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute
    Grinding speed: 0.5-6mm/s
    Working speed: maximum 20 teeth/minute
    Grinding wheel size (outer diameter x hole): (¢ 125mm x ¢32mmX1mm)
    Negative chamfer grinding: -27 degrees
    Grinding head rotatable angle: 90 degrees and 180 degrees
    Grinding wheel linear speed: 26m/s
    Flow rate of coolant water pump: 501/min
    Volume of coolant cylinder: 85L
    Total power: 2.2 kW
    Voltage: three-phase 380v
    Mechanical weight: 1200KG
    Mechanical dimensions (length x width x height): 1800X1400X1800mm
    Technical features:
    The design of this machine refers to the characteristics of similar domestic and foreign models, absorbs and analyzes the advantages of the same type, and makes some functional improvements. This equipment is specifically designed for grinding large alloy saw blades.
    1. Pre set multiple sets of tooth profiles for one click multifunctional operation.
    2. The flat teeth of the ladder can be completed in one go, with CNC grinding and any tooth shape, which can increase efficiency by three times; Improved gear extraction operation to improve accuracy and extend service life.
