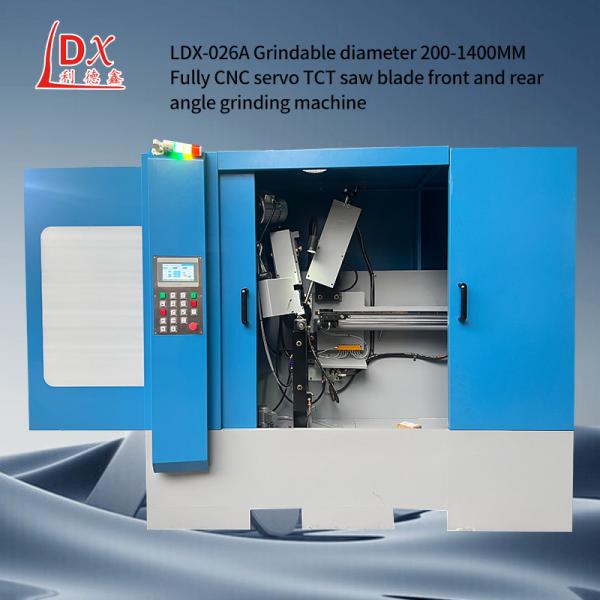

LDX-026A Grinding diameter 200-1400MM Full CNC grinding machine
Pitch and claw adjustment:
1,Before starting the machine, pay attention to the distance
between the grinding wheel and the saw blade to be more than 10mm,
and then start the machine. Before adjusting the pushing machine,
pay attention to the distance between the grinding wheel and the
saw blade to be more than 10mm, and then start the machine, adjust
the push claw stroke adjustment rod, adjust the push claw stroke,
so that the drop point of the push claw is in a suitable position.
2,After the machine is started, if the high and low teeth are
grinding, the adjustment lever of the high and low teeth difference
will be adjusted, and the indicator needle and the scale will be
displayed.
3,Complete the above steps, you can use the grinding wheel feed
screw to make the grinding wheel head move in the direction of the
saw blade, and then adjust the tooth adjustment screw when it is
about to contact the saw blade, so that the original teeth of the
saw blade are aligned with the wheel (adjust the screw to twist
clockwise, can make the teeth move forward, then the back of the
teeth will be ground more, otherwise, the cutting Angle will be
ground more), and then make the grinding wheel head move to the saw
blade.
| Main Technical Parameters : |
| Range of external diameter of processing:￠200-￠1400mm |
| Inner bore of saw blade:￠10-220mm |
| Thickness of saw web (steel plate):1-12mm |
| Pitch range:7-100mm |
| Tooth face angle:5°~+30° |
| Tooth top dorsal angle:6-45° |
| Tooth left/right gradient: Tooth top/tooth face 45° |
| Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min |
| Grinding speed:0.5-6mm/s |
| Working speed: Max. 20 teeth/min |
| Grinding wheel dimensions (outer diameter * bore):
(￠125mm*￠32mmX2mm) |
| Negative chamfer grinding: -27° |
| Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s |
| Coolant pump flux:501/min |
| Coolant cylinder volume: 85L |
| Total power: 2.2KW |
| Voltage:three-phase 380v |
| Total weight of equipment:1000KG |
| Appearance(Long*Width*Height):1600X1300X1900mm |
| Technical features: |
| This machine is designed in reference to the features of domestic
and foreign similar types, which absorbs and analyzes the
advantages of the same type and improves the functions to some
extent at the same time. |
| 1. Preset many groups of tooth types and one-key multifunctional
operation. |
2. Trapezoid flat teeth can be finished at a time, features CNC
grinding and arbitrary tooth types, and can improve the efficiency
by 3 times; due to the adoption of improved tooth extraction
operation, the accuracy is improved, and the service life is
prolonged.
|
