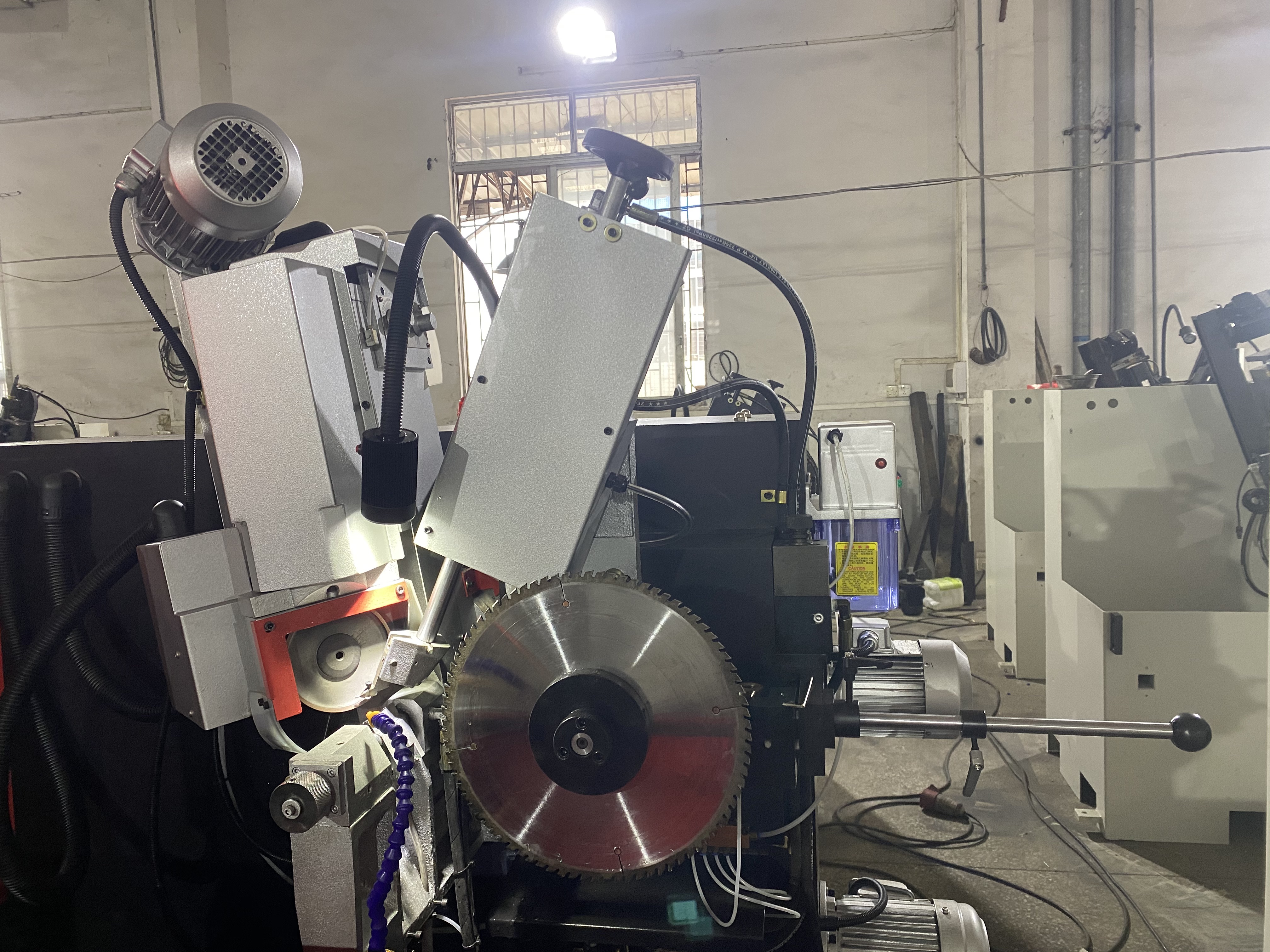

    LDX-026A Servo Feed NC TCT Circular Saw Blade Front And Rear Angle Grinding Machine

    Ask Lasest Price
    Brand Name : Lidexin
    Model Number : LDX-026A
    Certification : CU,ISO
    Price : Western Union
    Payment Terms : T/T, Western Union
    Supply Ability : 100pcs/mon
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

    LDX-026A Servo Feed NC TCT Circular Saw Blade Front And Rear Angle Grinding Machine


    LDX-026A Servo feed NC TCT circular saw blade front and rear Angle grinding machine


    CNC grinding tooth learning how long:


    1,understand the principle of CNC gear grinding, process flow, common equipment and tools.


    2,Master the operation methods and related technical requirements of CNC gear grinding special machine tools.


    3,Different people may have different learning speeds and understanding abilities. Some people may be able to master the numerical control gear grinding technology in a few months, while others may need longer time. Continuous learning and practice is the key to improving your skills.


    Main Technical Parameters :
    Range of external diameter of processing:¢100-¢800mm
    Inner bore of saw blade:¢10-220mm
    Thickness of saw web (steel plate):1-8mm
    Pitch range:7-100mm
    Tooth face angle:5°~+30°
    Tooth top dorsal angle:6-45°
    Tooth left/right gradient: Tooth top/tooth face 45°
    Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
    Grinding speed:0.5-6mm/s
    Working speed: Max. 20 teeth/min
    Grinding wheel dimensions (outer diameter * bore): (¢125mm*¢32mmX1mm)
    Negative chamfer grinding: -27°
    Grinding head rotation angle: 90° and 180°
    Grinding speed: 26m/s
    Coolant pump flux:501/min
    Coolant cylinder volume: 85L
    Total power: 2.2KW
    Voltage:three-phase 380v
    Total weight of equipment:900KG
    Appearance(Long*Width*Height):1500X1300X1800mm
    Technical features:
    This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.
    1. Preset many groups of tooth types and one-key multifunctional operation.
    2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.


    LDX-026A Servo Feed NC TCT Circular Saw Blade Front And Rear Angle Grinding Machine


    Quality LDX-026A Servo Feed NC TCT Circular Saw Blade Front And Rear Angle Grinding Machine for sale
