LDX-026A Manufacturers customize large servo swing Angle circular
saw blade grinding machine
Common sense of power supply for band saw gear grinding machine:
1,As we all know, high-speed machining technology is developing
rapidly, and to promote this development trend is the CNC grinding
machine, how to make reasonable use of the performance of the CNC
machine tool and maintain the accuracy of the machine tool, it is
very important, below, let's talk about the machine tool in the
power side need to pay attention to some details and common sense,
I hope it will be helpful to you.
2,The power supply is the energy support part that maintains the
normal operation of the system. The direct result of its failure or
failure is the shutdown of the system or the destruction of the
whole system. In addition, part of the numerical control system
operating data, setting data and processing programs are generally
stored in the RAM memory, and after the system is powered off, it
is maintained by the backup battery or lithium battery of the power
supply.
3,Therefore, the downtime is relatively long, unplugging the power
supply or memory may cause data loss, so that the CNC gear grinding
machine system can not run.
4,At the same time, because the CNC gear grinding machine uses a
three-phase AC 380V power supply, safety is also an important part
of the pre-installation work of the cycloidal gear grinding
machine.
| Technical parameters: |
| Processing saw blade diameter range: ￠500- ￠ 2200mm |
| Saw blade aperture: ￠ 10-220mm |
| Saw blade thickness (steel plate): 1-12mm |
| Tooth pitch: 7-120mm |
| Tooth surface angle: 5 degrees to+30 degrees |
| Tooth top back angle: 6-45 degrees |
| Left and right inclination of teeth: tooth tip/tooth surface 45
degrees |
| Blade grinding stroke range: maximum 25mm (adjustable) teeth/minute |
| Grinding speed: 0.5-6mm/s |
| Working speed: maximum 20 teeth/minute |
| Grinding wheel size (outer diameter x hole): (￠ 125mm x ￠32mmX2mm) |
| Negative chamfer grinding: -27 degrees |
| Grinding head rotatable angle: 90 degrees and 180 degrees |
| Grinding wheel linear speed: 26m/s |
| Flow rate of coolant water pump: 501/min |
| Volume of coolant cylinder: 85L |
| Total power: 2.2 kW |
| Voltage: three-phase 380v |
| Mechanical weight: 1200KG |
| Mechanical dimensions (length x width x height): 1900X1400X2000mm |
| Technical features: |
| The design of this machine refers to the characteristics of similar
domestic and foreign models, absorbs and analyzes the advantages of
the same type, and makes some functional improvements. This
equipment is specifically designed for grinding large alloy saw
blades. |

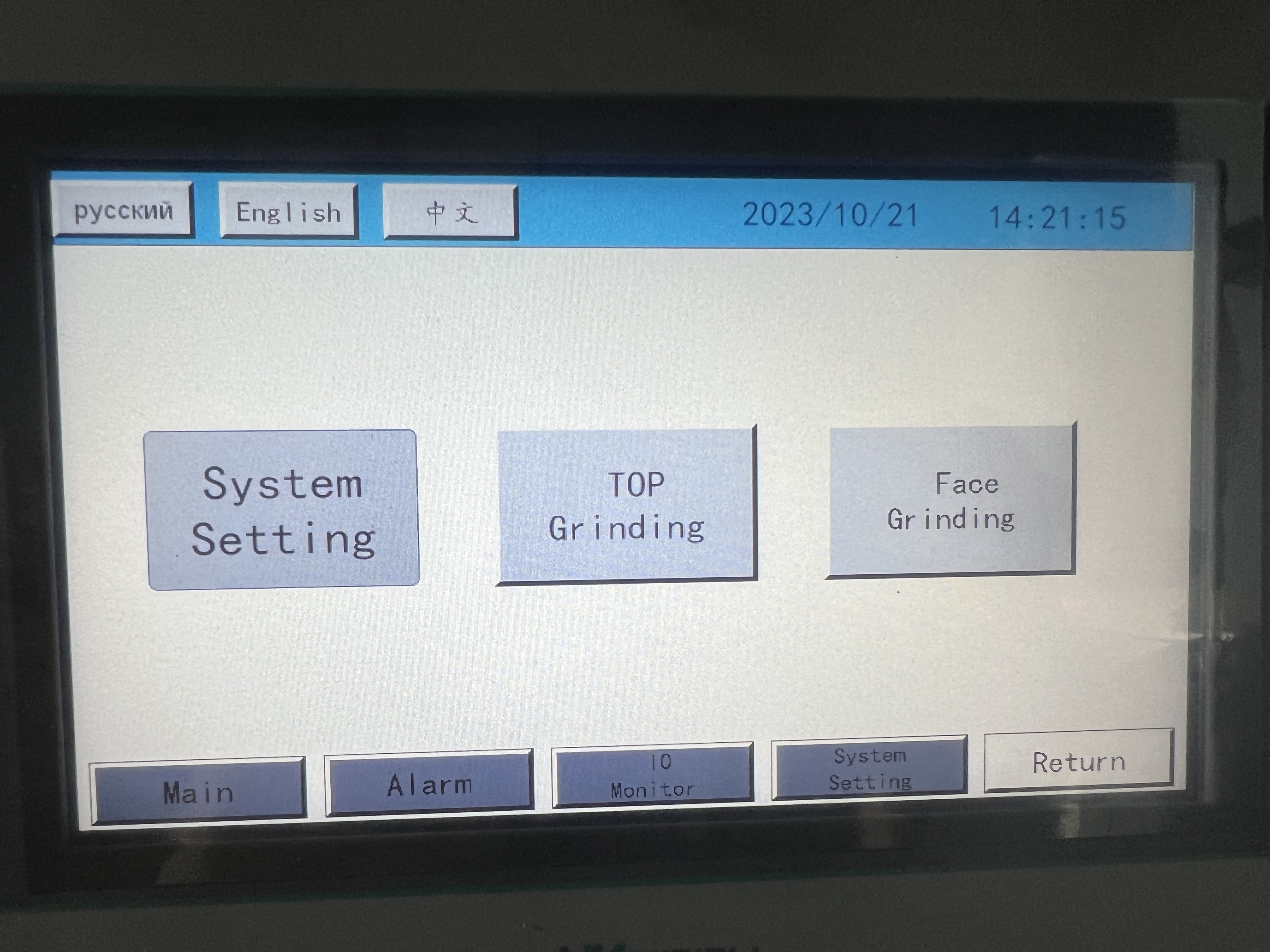

| 1. Pre set multiple sets of tooth profiles for one click
multifunctional operation. |
| 2. The flat teeth of the ladder can be completed in one go, with
CNC grinding and any tooth shape, which can increase efficiency by
three times; Improved gear extraction operation to improve accuracy
and extend service life. |
