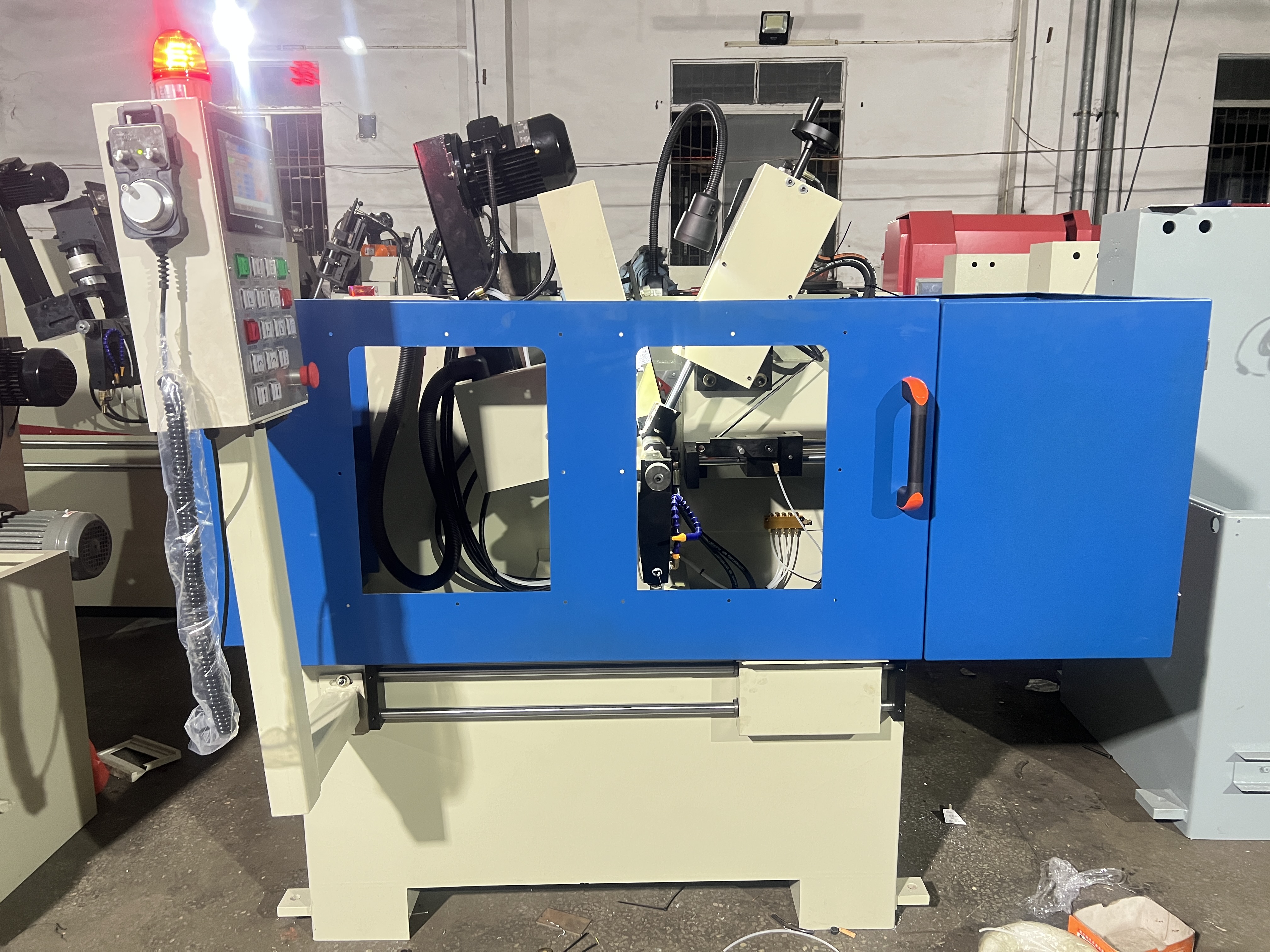

LDX-020B Manufacturer Direct Sales Of High Precision Servo Swing
Angle CNC Gear Grinding Machine
The correct maintenance of gear grinding machine has the following
points:
1,Correct maintenance and effective repair is also an important
issue in the use of bevel gear milling machines.
2,CNC machine tool maintenance personnel should have higher
theoretical knowledge and maintenance technology, to understand the
mechanical structure of CNC machine tools, understand the
electrical principle and electronic circuit of CNC machine tools,
but also should be relatively wide machine, electrical, gas, liquid
professional knowledge, so as to comprehensively analyze, judge the
root cause of the fault, correct maintenance, to ensure the good
operation of CNC gear grinding machine.
3,Therefore, CNC machine tool maintenance personnel and operators,
must carry out special training.
| Technical Parameters: |
| Processing saw blade diameter range: ¢100-800mm |
| Saw blade aperture: ¢10-220mm |
| Saw blade thickness (steel plate): 1-7mm |
| Pitch: 7-100mm |
| Tooth surface angle: 5 degrees ~ +30 degrees |
| Tip back angle: 6-45 degrees |
| Left and right inclination of the tooth: tooth top / tooth surface
45 degrees |
| Sharpening stroke range: up to 25mm (adjustable) teeth / minute |
| Sharpening speed: 0.5-6mm/s |
| Working speed: maximum 20 teeth / minute |
| Grinding wheel size (outer diameter x hole): (¢125mmx¢32mmX1mm) |
| Negative chamfer grinding: -27 degrees |
| Grinding head can rotate angle: 90 degrees and 180 degrees |
| Grinding wheel line speed: 26m / s |
| Coolant pump flow: 501/min |
| Cooling tank volume: 85L |
| Total power: 1.85 kW |
| Voltage: three-phase 380v |
| Mechanical weight: 710KG |
| Mechanical size (length X width X height): 1500X1300X1800mm |
| Technical features: |
| This machine is designed in reference to the features of domestic
and foreign similar types, which absorbs and analyzes the
advantages of the same type and improves the functions to some
extent at the same time. |
| 1. Preset many groups of tooth types and one-key multifunctional
operation. |
2. Trapezoid flat teeth can be finished at a time, features CNC
grinding and arbitrary tooth types, and can improve the efficiency
by 3 times; due to the adoption of improved tooth extraction
operation, the accuracy is improved, and the service life is
prolonged.
|
