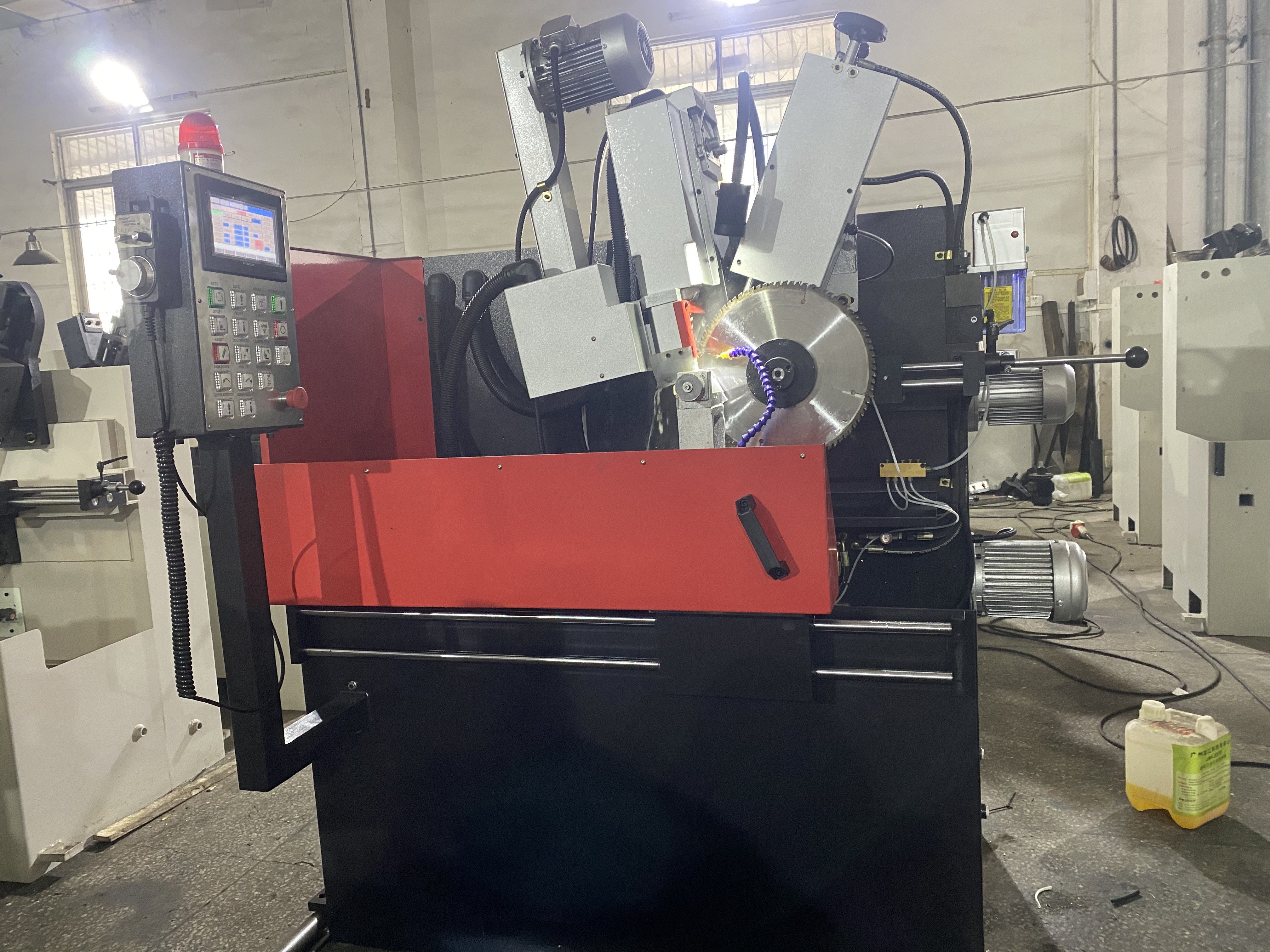

LDX-026Full CNC servo hand wheel TCT circular saw blade grinder
Automatic saw blade grinding machine function:
1,utomatic saw blade grinding machine is an efficient and accurate
gear grinding equipment, mainly used for grinding the saw blade, so
that it has better cutting ability and service life. The equipment
adopts advanced numerical control technology, which can
automatically complete a series of work such as gear grinding,
chamfering, cleaning, etc., which not only improves production
efficiency, but also improves product quality.
Automatic saw blade grinding machine operating steps:
1,Power on, start the device, and enter the human-machine
interface.
2,The up/Down button selects the size of the saw blade to be
processed
3,Turn on the lubrication switch and inject lubricating oil so that
the saw blade can rotate smoothly.
4,Put the saw blade in the appropriate position, press the start
button, the automatic saw blade grinding machine can automatically
complete a series of work such as grinding teeth, chamfering,
cleaning and so on.
5,After the grinding is complete, shut down the equipment and take
out the sharpened saw blade.
| Main Technical Parameters : |
| Range of external diameter of processing:￠100-￠800mm |
| Inner bore of saw blade:￠10-220mm |
| Thickness of saw web (steel plate):1-8mm |
| Pitch range:7-100mm |
| Tooth face angle:5°~+30° |
| Tooth top dorsal angle:6-45° |
| Tooth left/right gradient: Tooth top/tooth face 45° |
| Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min |
| Grinding speed:0.5-6mm/s |
| Working speed: Max. 20 teeth/min |
| Grinding wheel dimensions (outer diameter * bore): (￠125mm*￠32mm) |
| Negative chamfer grinding: -27° |
| Grinding head rotation angle: 90° and 180° |
| Grinding speed: 26m/s |
| Coolant pump flux:501/min |
| Coolant cylinder volume: 85L |
| Total power: 2.2KW |
| Voltage:three-phase 380v |
| Total weight of equipment:900KG |
| Appearance(Long*Width*Height):1500X1300X1800mm |
|
| Technical features: |
| This machine is designed in reference to the features of domestic
and foreign similar types, which absorbs and analyzes the
advantages of the same type and improves the functions to some
extent at the same time. |
|
| 1. Preset many groups of tooth types and one-key multifunctional
operation. |
| 2. Trapezoid flat teeth can be finished at a time, features CNC
grinding and arbitrary tooth types, and can improve the efficiency
by 3 times; due to the adoption of improved tooth extraction
operation, the accuracy is improved, and the service life is
prolonged. |
