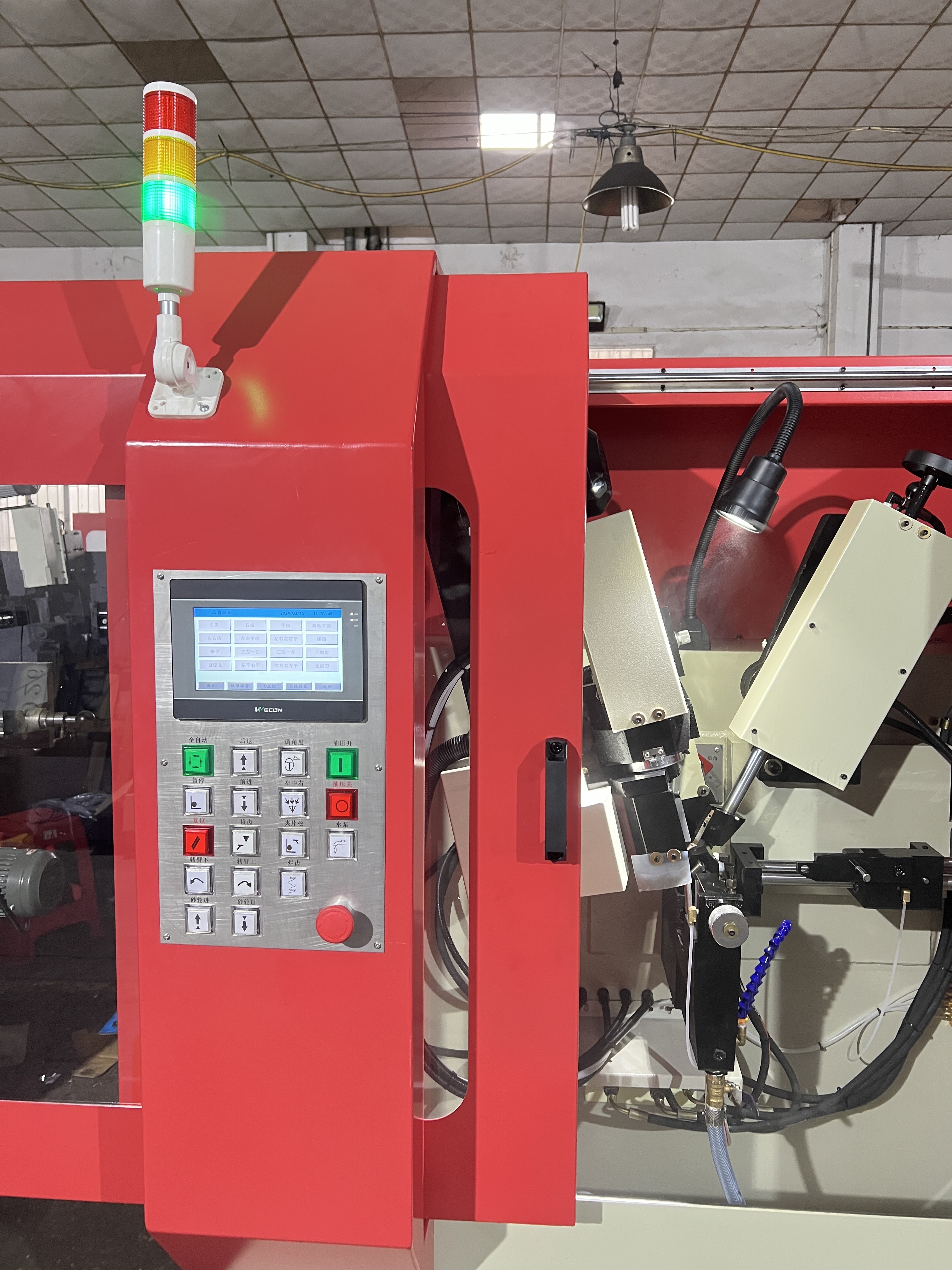

LDX - 026B CNC grinding machine for woodworking carbide saw blade
Product characteristics:
1. Efficient and accurate: The CNC system can precisely control the
grinding depth and Angle to ensure the precision and sharpness of
the saw blade after grinding. At the same time, the efficient
grinding speed greatly improves the production efficiency.
2. Easy to operate: humanized operation interface, so that
operators can quickly get started. Rapid grinding of saw blade can
be achieved by simple operation.
3. Durable and stable: The machine is made of high quality
materials to ensure the stable performance of the equipment during
long-term use. At the same time, the easy-to-maintain design
reduces the maintenance cost of the equipment.
4. Widely applicable: Suitable for various specifications of alloy
saw blade grinding, to meet different sawing processing needs.
Application field:
TCT saw blade grinding machine is widely used in wood, metal,
plastic and other materials sawing processing field. Whether it is
furniture manufacturing, architectural decoration or automotive
manufacturing, this machine can provide you with efficient and
accurate saw blade grinding solutions.
| Technical Parameters: |
| Processing saw blade diameter range: ¢100-800mm |
| Saw blade aperture: ¢10-220mm |
| Saw blade thickness (steel plate): 1-7mm |
| Pitch: 7-100mm |
| Tooth surface angle: 5 degrees ~ +30 degrees |
| Tip back angle: 6-45 degrees |
| Left and right inclination of the tooth: tooth top / tooth surface
45 degrees |
| Sharpening stroke range: up to 25mm (adjustable) teeth / minute |
| Sharpening speed: 0.5-6mm/s |
| Working speed: maximum 20 teeth / minute |
| Grinding wheel size (outer diameter x hole): (¢125mmx¢32mmX1mm) |
| Negative chamfer grinding: -27 degrees |
| Grinding head can rotate angle: 90 degrees and 180 degrees |
| Grinding wheel line speed: 26m / s |
| Coolant pump flow: 501/min |
| Cooling tank volume: 85L |
| Total power: 1.85 kW |
| Voltage: three-phase 380v |
| Mechanical weight: 710KG |
| Mechanical size (length X width X height): 1500X1300X1800mm |
|
| Technical features: |
| This machine is designed in reference to the features of domestic
and foreign similar types, which absorbs and analyzes the
advantages of the same type and improves the functions to some
extent at the same time. |
|
| 1. Preset many groups of tooth types and one-key multifunctional
operation. |
| 2. Trapezoid flat teeth can be finished at a time, features CNC
grinding and arbitrary tooth types, and can improve the efficiency
by 3 times; due to the adoption of improved tooth extraction
operation, the accuracy is improved, and the service life is
prolonged. |
